Product Detailes:
Name:High-Pressure Hydraulic Cylinder
Place of Origin: China
Certification: ISO9001:2001
As a professional hydrualic cylinder manufacturer and supplier,Datong has been supplying and exporting hydraulic for almost 20 years.
Datong is the professional large-scale hydraulic cylinder design and manufacturing enterprises, We took advantage of the technology and equipment for more than a decade to develop a large-sized non-standard hydraulic cylinders, hydraulic cold drawing machine, water conservancy and hydropower hydraulic hoist, water hydraulic pressure relay, all kinds of hydraulic engineering, metallurgy, machine oil cylinder cylinder, steel bar, etc.
High-pressure hydraulic cylinders require precise engineering designs and high-strength materials. Experienced machining is essential to meet exacting tolerances and ensure performance and field safety. We have the knowledge and experience to deliver complex, custom high-pressure hydraulic cylinders that meet your requirements and application needs.
Reliable, Rugged High-Pressure Cylinders
Purpose-built cylinders deliver the performance you need in a style that meets your application requirements.
- Precision Engineering
- High-Strength Materials
- Experienced Machining
High-Pressure Cylinder Features & Specifications
- Pressures above 5,000 psi
- Specialized applications and pressures up to 10,000 psi
- Robust, Heavy-duty designs
- High-yield strength carbon or alloy steel outer tubes
- Extensive pressure testing
- Double and single acting designs
ISO 9001:2015 Certified
Earning ISO 9001:2015 certification is a badge of honor. Quality has become reinforced in every facet of our company. Defined structures and processes allow us to achieve higher operating efficiency while continuing to deliver industry-leading products.

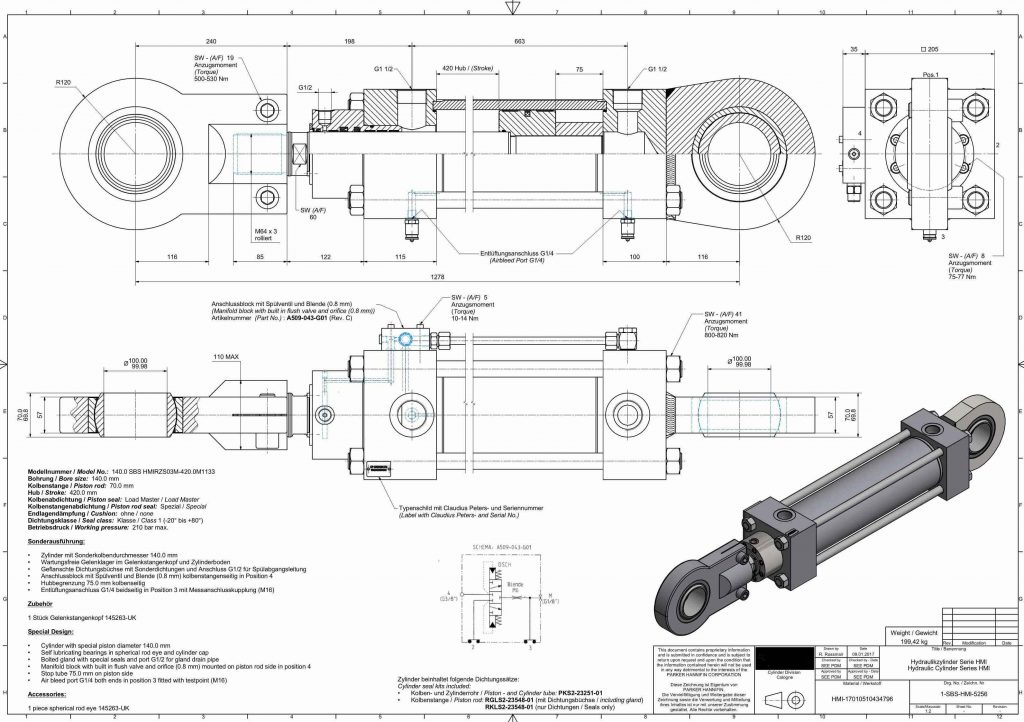

hydraulic cylinder design[/caption]
Cylinder tube
According to the cylinder pressure and inside diameter size, different steel tube would be selected.
ID ≤300mm, choose cold rolled precision seamless tube
300mm≤ID ≤500mm, choose hot rolled seamless tube
500mm≤ID ≤1000mm, choose forged tube
Steel grade : ST52,SAE1020, SAE1045,SAE1518,SAE4140,SAE4145, 27SiMn , S355JR, S355J2G3, St52-3, SUS304, SUS316L etc.
Inside boring and honing , roughness R0.2-R0.3
Inside chromed : if necessary ,tube inside chrome plating could be applied
Piston rod
steel grade : SAE4140 SAE1045,SAE4145,SAE1518, 42CrMo4, SUS410 ,SUS420, SUS304, SUS316L
Eternal company ensure that every piece piston rod would be surface hardened before plating, surface hardness is HRC55~60 , plating film thickness is 0.03~0.04mm if there is no other specific requirements.
Seal ring and O ring
According to the customers’ requirements and working condition, eternal company would choose suitable
seal ring kit, seal ring brand include: Parker, Merkel, NOK, Guangzhou Rubber institute, Taiwan brand etc. Eternal company would supply suitable seal solution for their customer so that hydraulic cylinder has more lifetime, easy maintenance and simple repairing.
Tube and flange welding
The welding on cylinder tube and flange would be Ultrasonic tested every time, the welding seam would be
cleaned before machining. Eternal company ensure that every welding seam has no any leak during lifetime
1.Extensive production experience: more than 20 years manufacturing experience for honed tube and chrome plated rod, in Australia, Thailand, Brazil, India, Iran, Indonesia, South Africa and other countries have long-term buyers.
2.Advanced production equipment: cold drawing machine, honing machine, skiving & roller burnishing machine, straightening machine, polishing machine, heat treatment furnace, grinding machine, etc. We have professional technicians do regular scheduled maintenance on these machines to guarantee them work well.
3.High quality raw material: our raw material mainly from some famous steel mills, such as TPCO, BAO STEEL, SHA STEEL, which are best and largest raw material manufacturer in China.
4.High precision: Honed Tube, inside surface roughness 02-0.4 um, straightness max 0.5/1000, strict tolerance DIN2391 H8. Skived & Roller Burnished Tube, inside surface roughness under 0.2 um, straightness max 0.2/1000, strict tolerance DIN2391 H8. Chrome Plated Rod, chrome layer 10 micron to 100 micron, strict tolerance ISO f7.
5.Strict quality control: we have professional in-house QC to inspect all products. We will do Chemical Composition Test, Mechanical Property Test, Dimension Inspect, Roughness Test, Chrome Layer Test and other tests in need before delivery.
6.Safe packing: an-rust oil on tubes and rods before delivery. Plastic caps on both ends to protect tube inside surface. Then be packed with seaworthy package or in wooden case.
