Product Detailes:

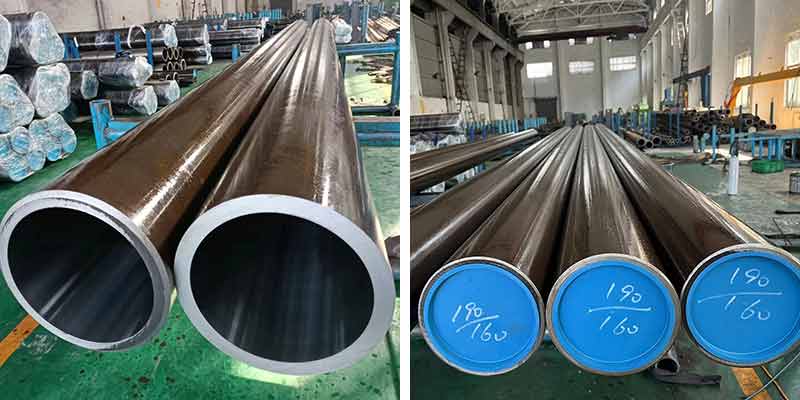

Name:Hydraulic Cylinder Honed Tube
Place of Origin: China
Brand Name: Datong
Honed Tube is well known as hydraulic cylinder tube in industries.Honed Tubes/ Skived & Roller Burnished Tubes are the most important material of manufacturing hydraulic cylinders
We produce honed steel tubes and skived roller burnished tubes used for hydraulic cylinder or pneumatic cylinder with high quality & good prices.Imperial sizes & metric sizes available.
As one of the leading hydraulic cylinder honing tubes suppliers and manufacturers,Datong has been supplying and exporting honed tube for almost 20 years.

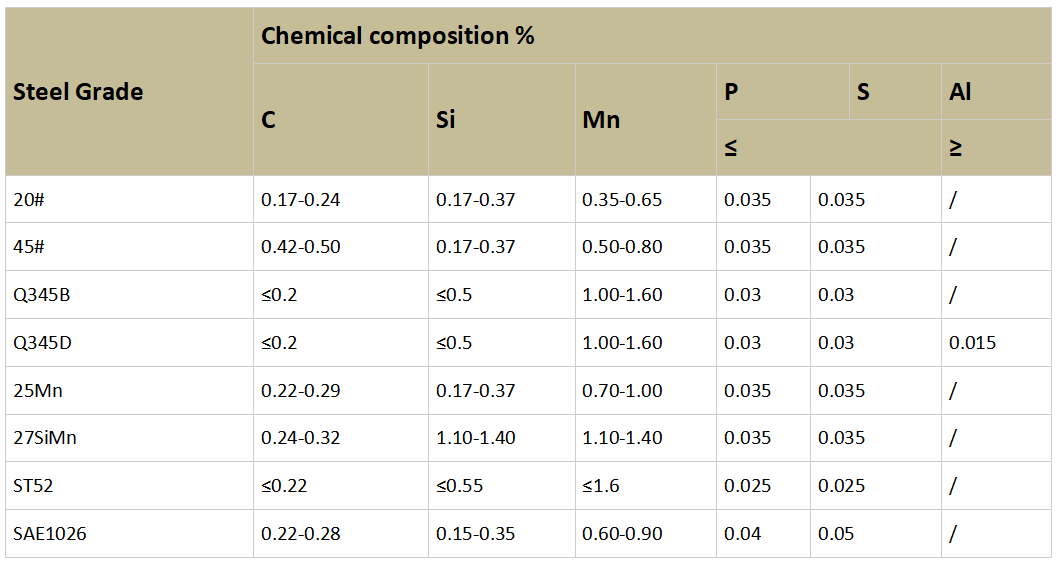

Material: E355 ST52,CK45,4140,SCM440,16Mn,42CrMo,SAE1518,SAE8620/8630, F-1140 ,Stainless Steel 304/316,Duplex 2205,etc.

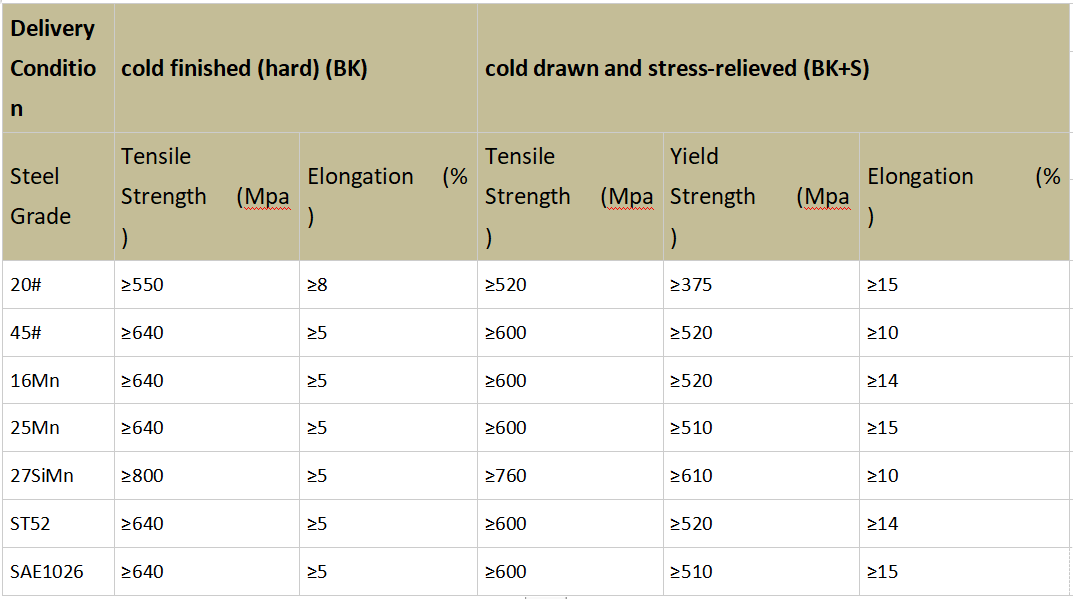

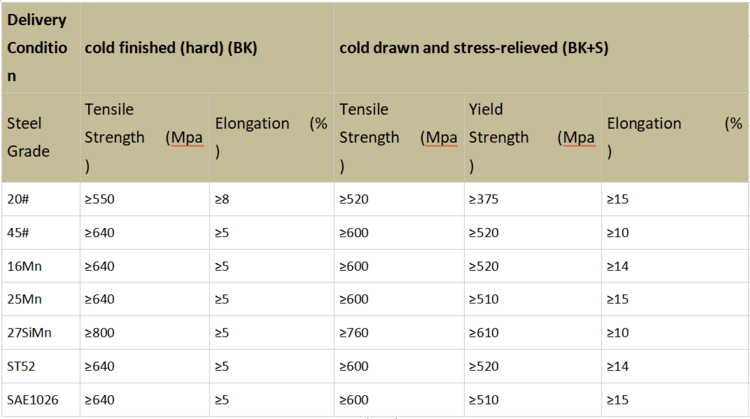

Delivery Condition: BK, BK+S, GBK, NBK
ID Size : 20mm – 1500mm
Length: max 16m
Type: Seamless, Hot Rolled, Cold Rolled, Cold Drawn
Straightness: ≤ 0.5/1000
Roughness: 0.2-0.4 um
Tolerance EXT: DIN2391, EN10305, GB/T 1619, GOST 8731,GOST 1050,GOST4543

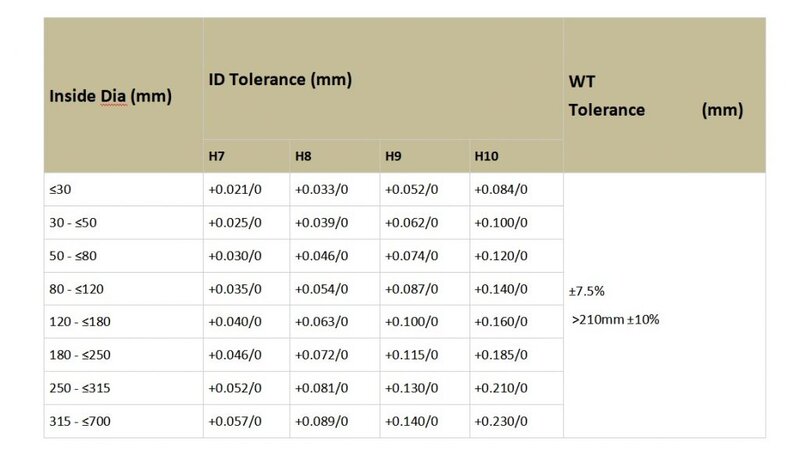

Tolerance INT: H7,H8,H9

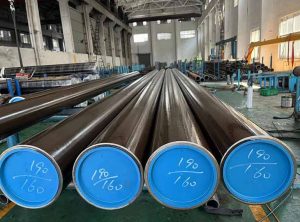

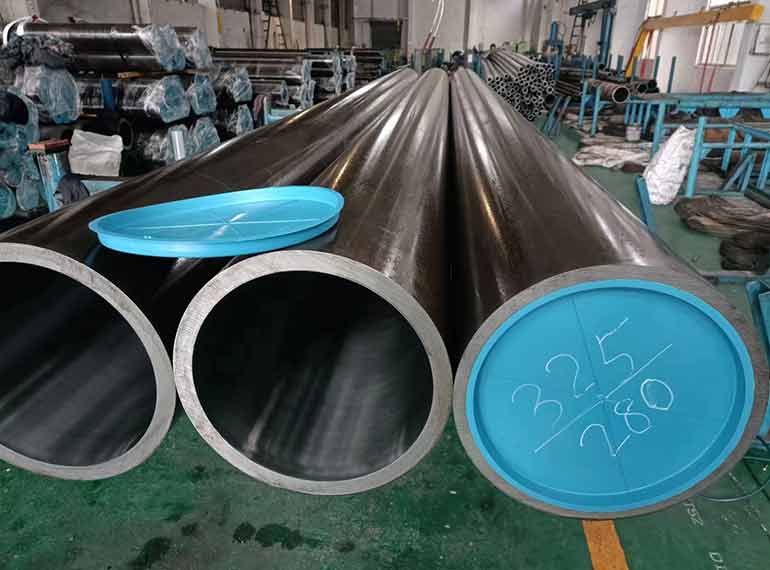

Protection: Anti-rust oil on inside and outside surface, plastic caps in both ends.

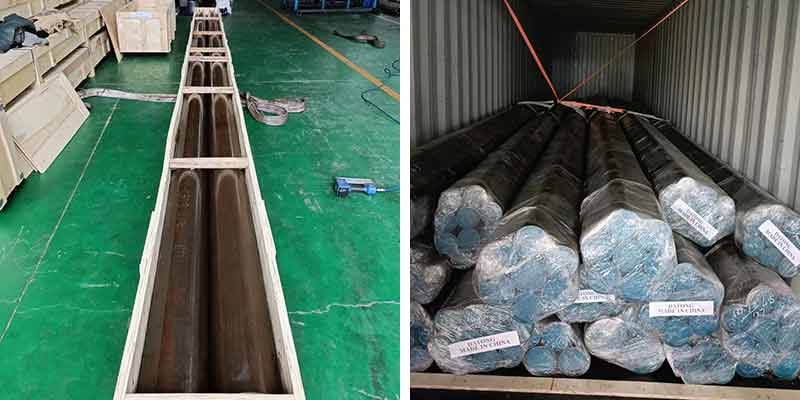

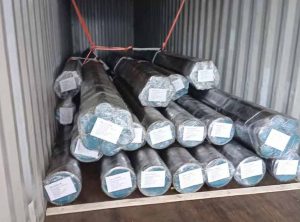

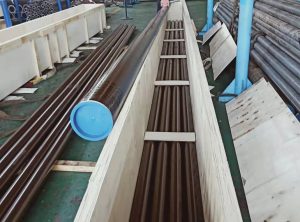

Packing: Bundle with steel strip and PE sheet or wooden case
Advantages of Datong’s Honed tube
1, High precision tolerances;
Our honed steel tube can meet ID tolerance H7, H8, H9, … etc according to the customer’ requirements, and its I.D dimension.
2, Seamless tube with high pressure resistance;
We only use seamless cold drawn tubes to produce honed pipes, which means our honed tubing can work under higher pressure, thus our honed pipes are more reliable for hydraulic cylinder applications.
3, High Smooth inside surface;

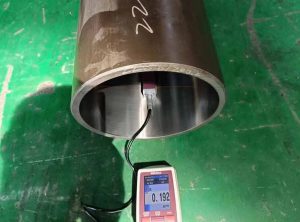

The roughness of our honed pipe is Max Ra 0.4 microns ID finish .
4, Good weldability: The weldability of our honed steel tubing is very good, this is quite helpful for manufacturing the cylinders.
Available Products of Honed Tubes
- E355 (EN 10305-1) Honed Tubes

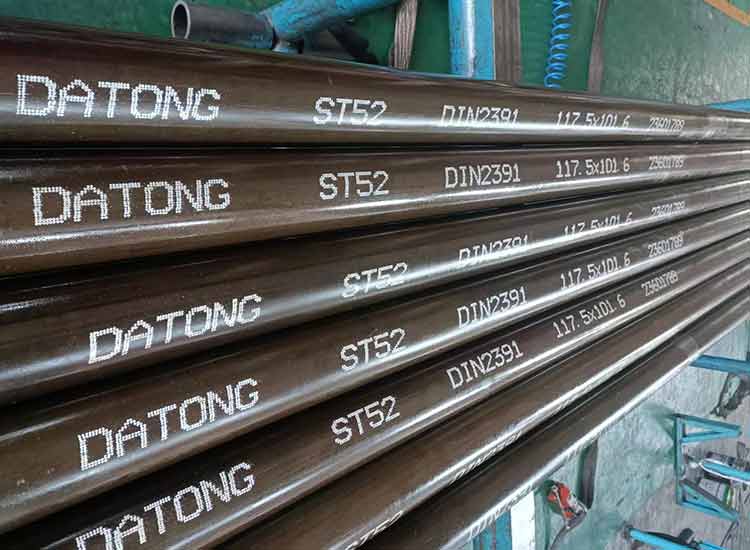

- St52-3 (DIN 2391) Honed Tube
- H8 (EN ISO 286-2) Honed Tube
- AISI / SAE / ASTM Honed Tubes
- +SR (EN 10305-1) Honed Tubing
- Stainless Steel Honed Tube
- ST52 Honed Tube
- Mild Steel Honed Tube
- Carbon Steel Honed Tube
- Nitrided Honed Tube
- BK+S (DIN 2391) Honed Tubes
- E355 Honing Tubes
- Hiqh Quality H8 Honed Tube

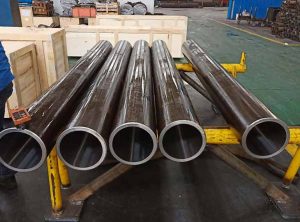

- Seamless Honed Tube

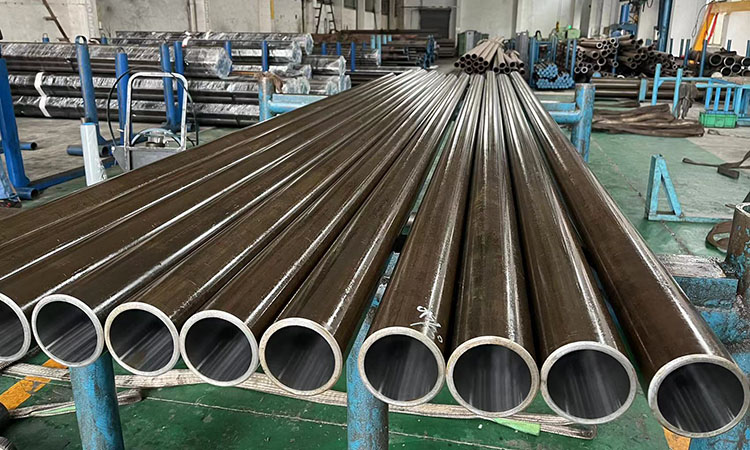

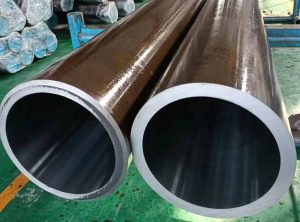

- Hydraulic Honed Tube
- Honed Steel Tube
- Honed tube for hydraulic cylinder
- Skived Roller Burnished Tube
- Chrome Plated Tube
- Ready to hone tube;

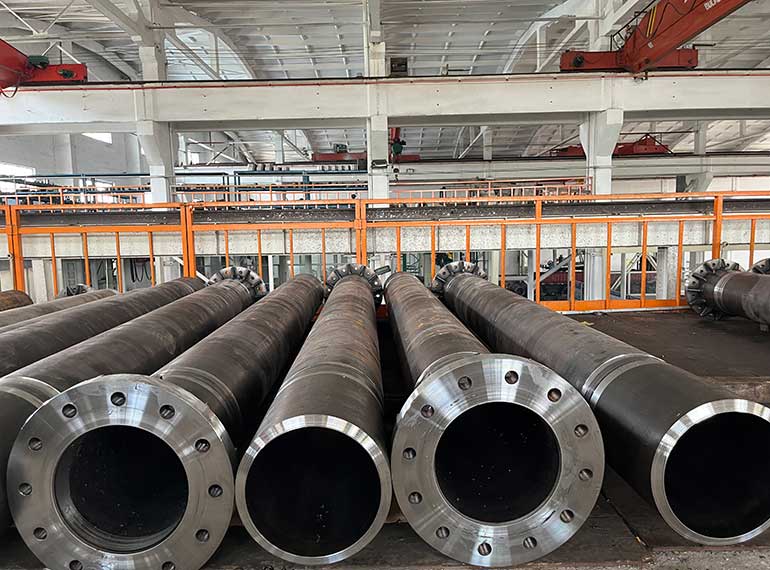

- Large size honed bore tube;
- Seamless cold drawn tube
1.Extensive production experience: more than 20 years manufacturing experience for honed tube and chrome plated rod, in Australia, Thailand, Brazil, India, Iran, Indonesia, South Africa and other countries have long-term buyers.

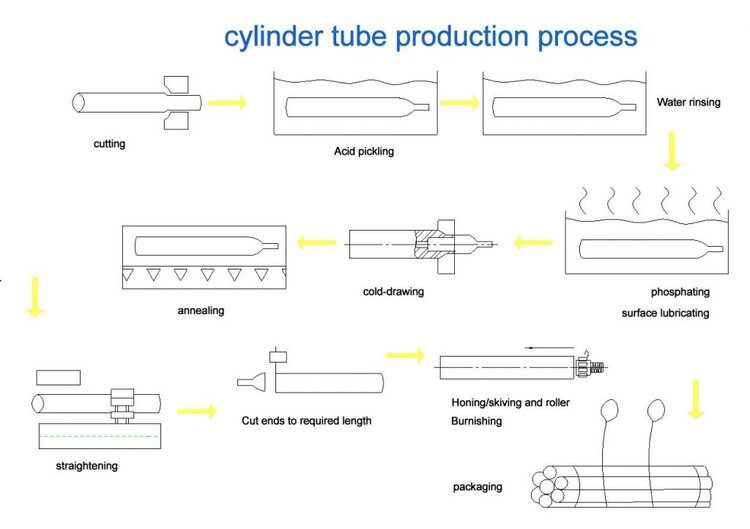

2.Advanced production equipment: cold drawing machine, honing machine, skiving & roller burnishing machine, straightening machine, polishing machine, heat treatment furnace, grinding machine, etc. We have professional technicians do regular scheduled maintenance on these machines to guarantee them work well.
3.High quality raw material: our raw material mainly from some famous steel mills, such as TPCO, BAO STEEL, SHA STEEL, which are best and largest raw material manufacturer in China.
4.High precision: Honed Tube, inside surface roughness 02-0.4 um, straightness max 0.5/1000, strict tolerance DIN2391 H8. Skived & Roller Burnished Tube, inside surface roughness under 0.2 um, straightness max 0.2/1000, strict tolerance DIN2391 H8. Chrome Plated Rod, chrome layer 10 micron to 100 micron, strict tolerance ISO f7.

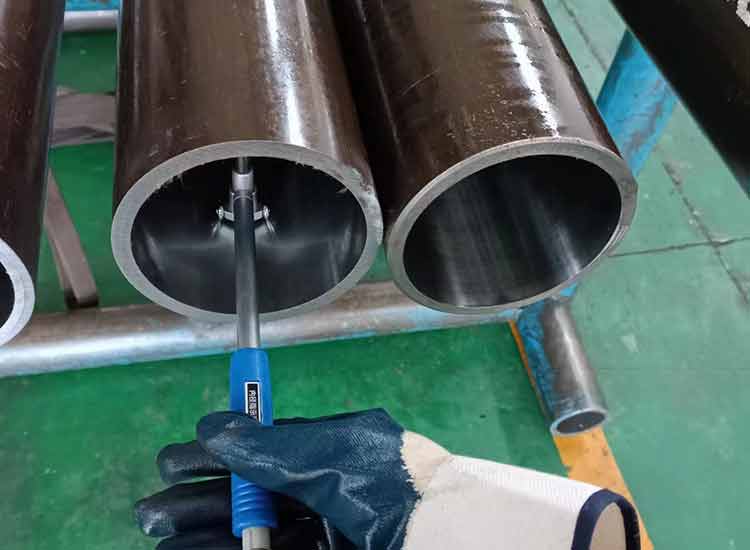

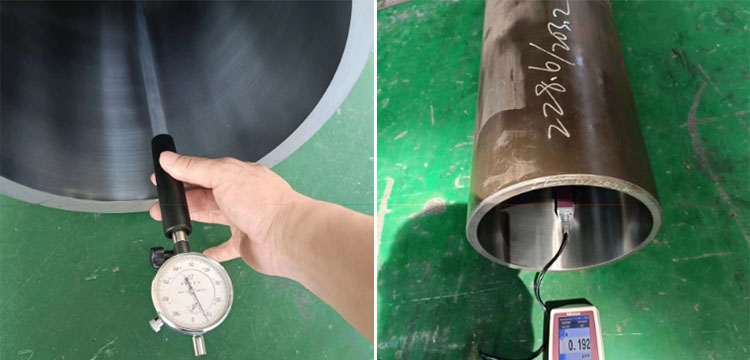

5.Strict quality control: we have professional in-house QC to inspect all products. We will do Chemical Composition Test, Mechanical Property Test, Dimension Inspect, Roughness Test, Chrome Layer Test and other tests in need before delivery.
6.Safe packing: an-rust oil on tubes and rods before delivery. Plastic caps on both ends to protect tube inside surface. Then be packed with seaworthy package or in wooden case.
